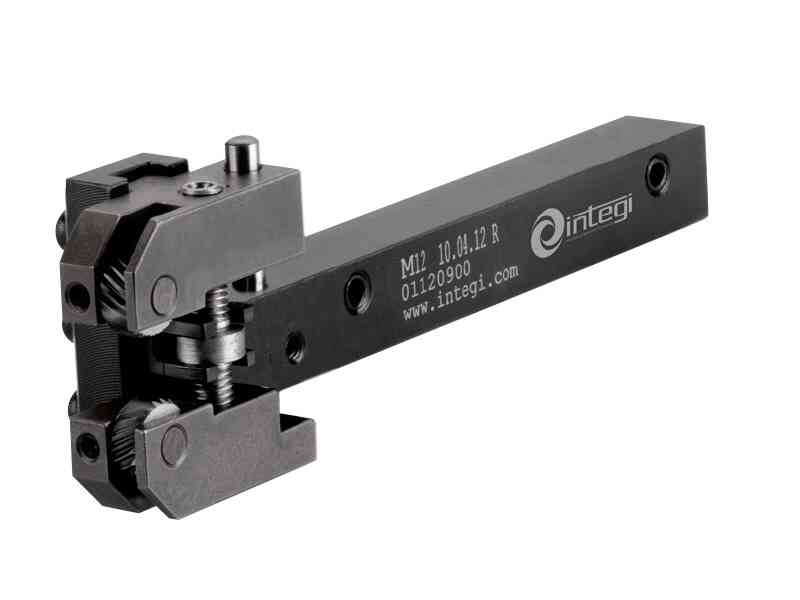

M12 Knurling Tool manufactured by Integi.
Features
- Recommended for RGE* type knurling on small diameter workpieces
- Lower risk of bending the workpiece as tool does not make radial pressure
- Self-centering system to compensate a possible misalignment of the lathe turret (Fig. 2)

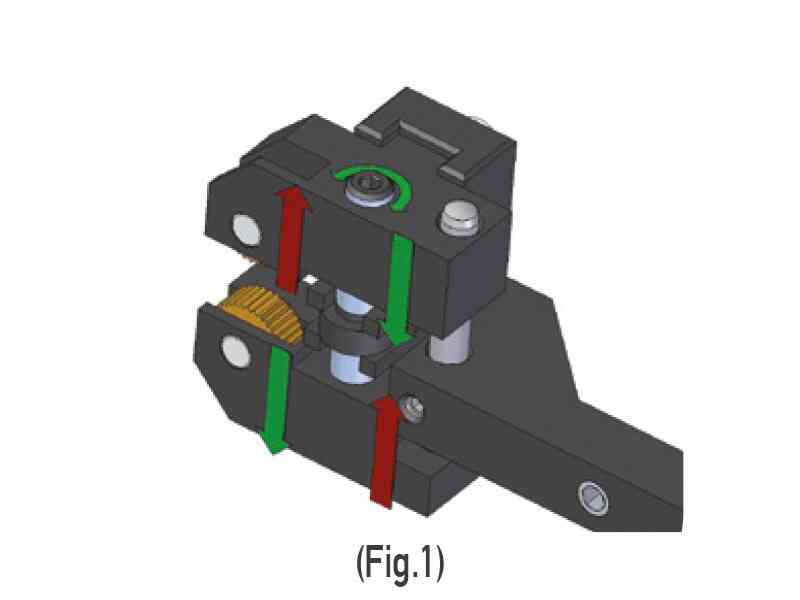

- Knurls self-centering by threaded spindle (Fig. 1)
- Carbide pins
- Anti-wearing treatment of the arms surface.
- Adjustment of tool clearance angle by threaded studs integrated in the shank

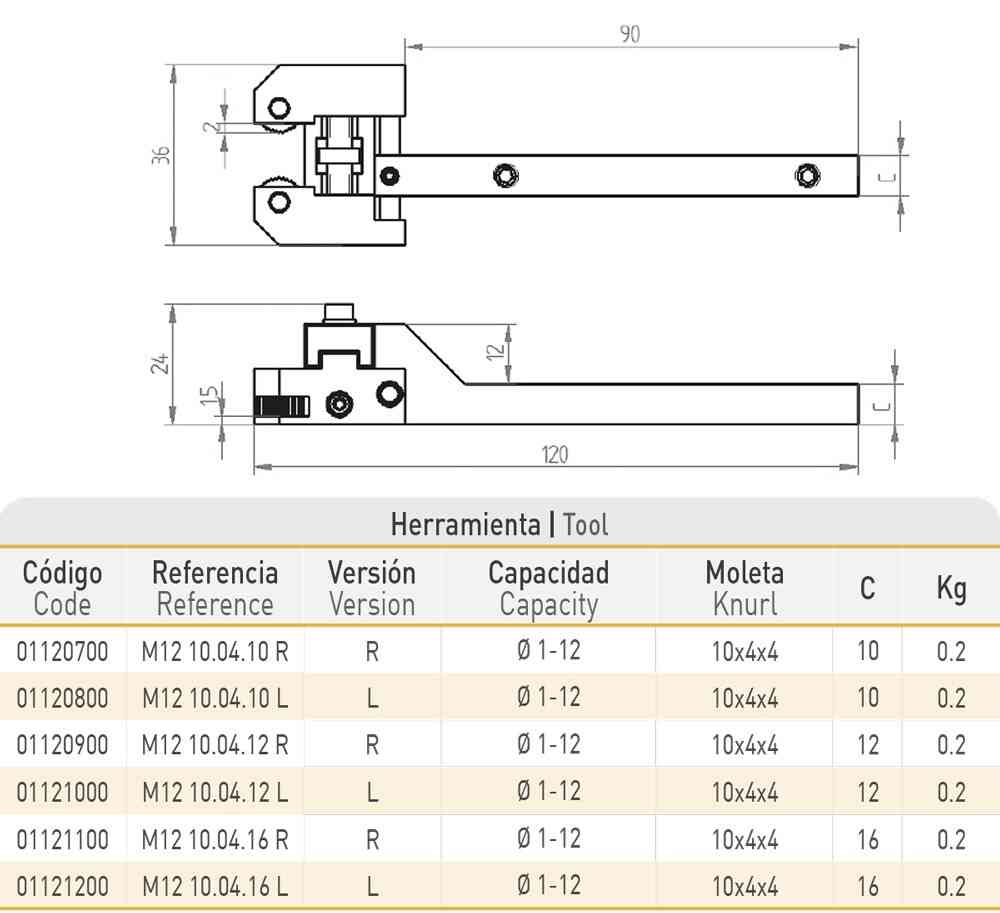

Specification
| Shank Size (HxW) | 8×8, 10×10, 12×12, 16×16 |
|---|---|
| Knurl Size | 10x4x4 |
| Feasible Forms | RAA, RGE 30º*, RGE 45º* |
Contact us for pricing, availability and full model dimensions.
